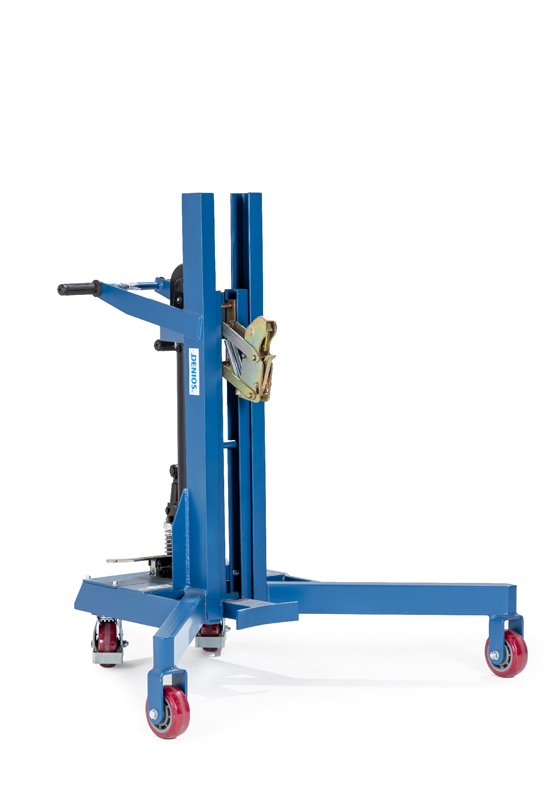

Type LD with self-closing gripping mechanism
Specially for 205 litre steel ribbed drums and steel clamping Ring drums
With robust powder coating in RAL 5010 (blue)
Even Euro pallets can be reached over so that a drum in the centre can easily be accessed
Easy drum lifting using the foot pump, lowering with separate foot pedal
With robust powder coating in RAL 5010 (blue)

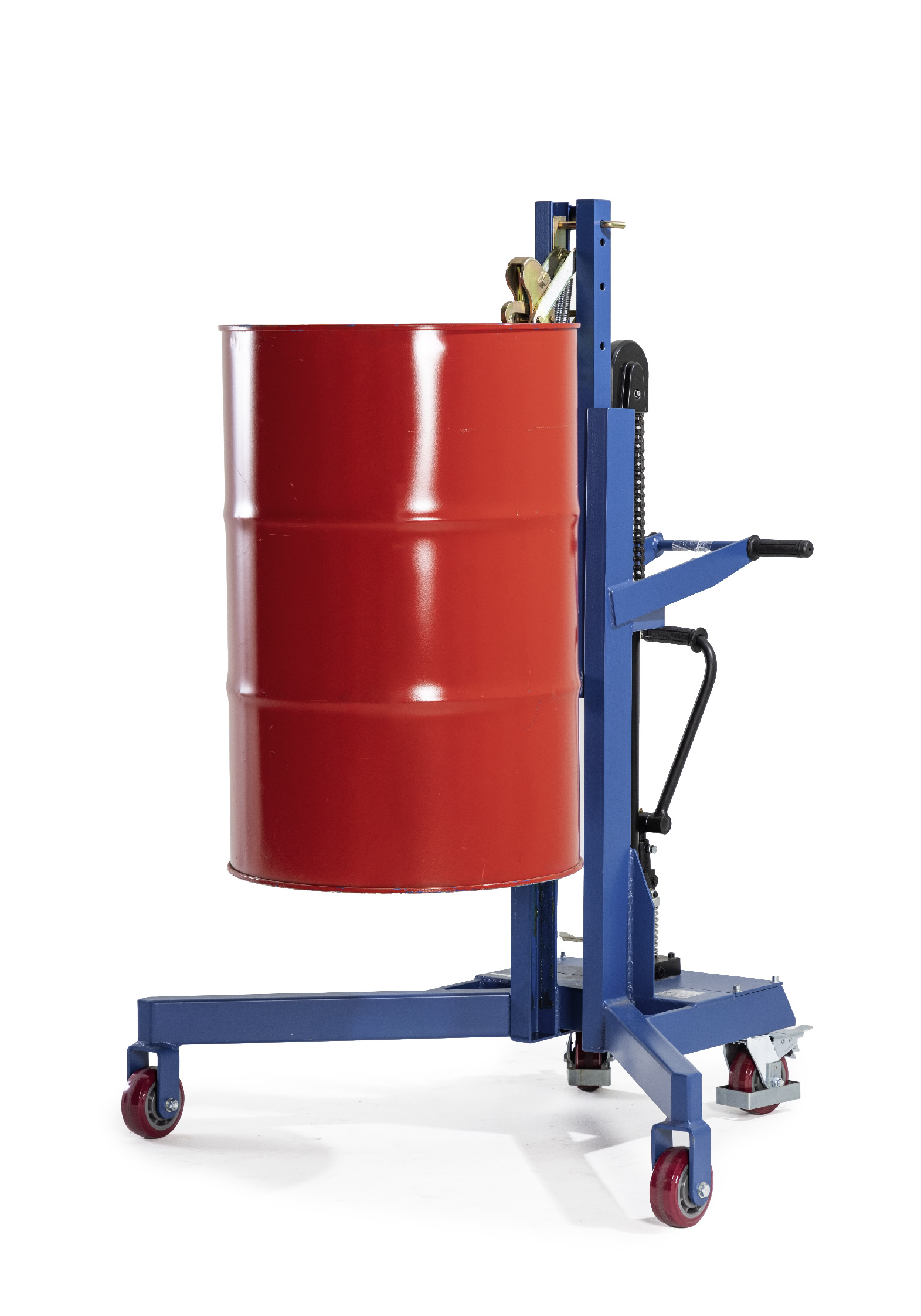

When the foot hydraulics are activated the drum is automatically grabbed and held safely
Versatile and space saving 2 swivel castors (with brake) ensure precise parking for storage

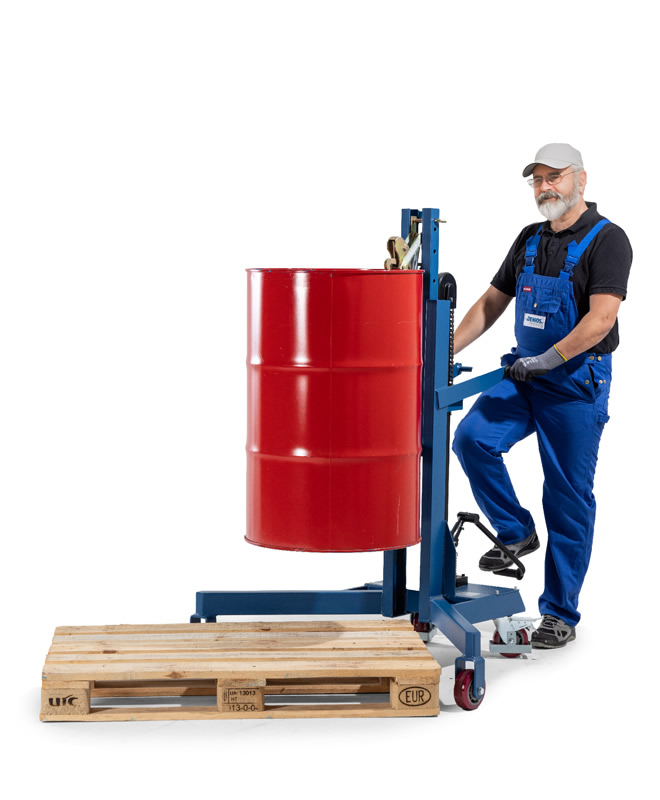

Simple, safe loading over the corner e.g. of Euro pallets and DENIOS spill pallets
Available in 2 versions:
for 205 l steel drums
for 205 l steel drums and 205 l plastic drums
Model: LD
Application: Lifting / transporting steel drums
Drive: Foot pump
Chassis/equipment: Splayed
Width, external [mm]: 1218
Length, external [mm]: 900
Height, external [mm]: 1260
Wheel diameter [mm]: 125
Roll diameter [mm]: 125
Clear chassis width [mm]: 483
Overall load capacity [kg]: 350
Colour: Blue
Suitable for: 205 L steel drums
Certification / certificate description 1: 2006/42 Declaration of conformity
Stroke [mm]: 600
Lift height max [mm]: 493
Lift height per pedal action [mm]: 28
Ground clearance height [mm]: 164
Surface: Powder coated
Material: Steel
Tyres: Pu
Roll material: Pu
Weight [kg]: 145
