Suitable for 205 litre steel ribbed drums
Simple, easy loading e.g. of Euro pallets and DENIOS spill pallets
The wheel base of the drum lifter is wide enough to push the lifter either side of Euro pallets to ensure that drums at the back of the pallet can be reached easily
Special locking mechanism fixes onto the top of the drum to hold the drum in place
Drum can be lifted easily using a handle
Drum can be lowered to a desired height using the foot pedal
Easy to manoeuvre with large fixed and swivel castors (swivel castors with brakes)
With robust powder coating in RAL 5010 (blue)
Application: Lifting / transporting steel drums
Drive: Foot pump
Chassis/equipment: Parallel

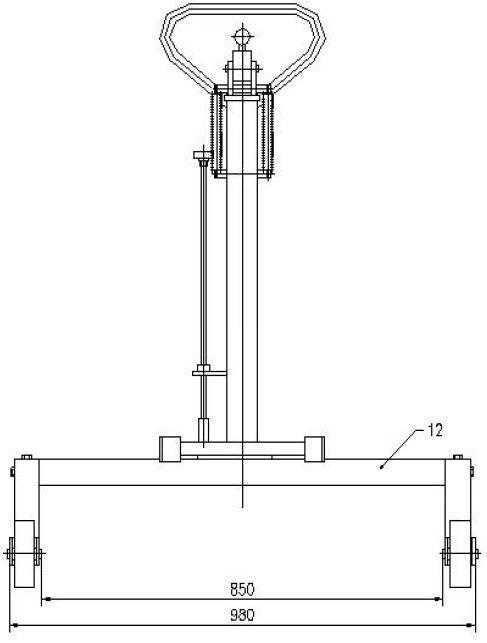

Width, external [mm]: 980
Length, external [mm]: 810
Height, external [mm]: 1180
Wheel diameter [mm]: 125
Roll diameter [mm]: 125
Clear chassis width [mm]: 850
Overall load capacity [kg]: 250
Colour: Blue
Suitable for: 205 litre ribbed steel drums
Certification / certificate description 1: 2006/42 Declaration of conformity
Stroke [mm]: 320
Lift height max [mm]: 300
Lift height per pedal action [mm]: 25
Ground clearance height [mm]: 200
Surface: Powder coated
Material: Steel
Tyres: Pu
Roll material: Pu
Weight [kg]: 120
