With additional safety clamp both 205/220 litre steel ribbed and plastic L-ring drums are securely gripped and held
Safety handle can be operated with one hand and has A 3 way function (lifting / lowering / transporting)
Additional foot pedal for accurate lifting
The extended wheel and safety grid ensure maximum safety for the user
2 fixed castors and 2 swivel castors (with brakes and foot guard) ensure easy manoeuvrability
With robust powder coating in blue (RAL 5010)
Rotation range: 180°
Rotation range: 180°
Lifting and turning of 205 l steel ribbed drums and 220 l plastic L-ring drums
The wide wheelbase allows Euro pallets to be loaded from the narrow side

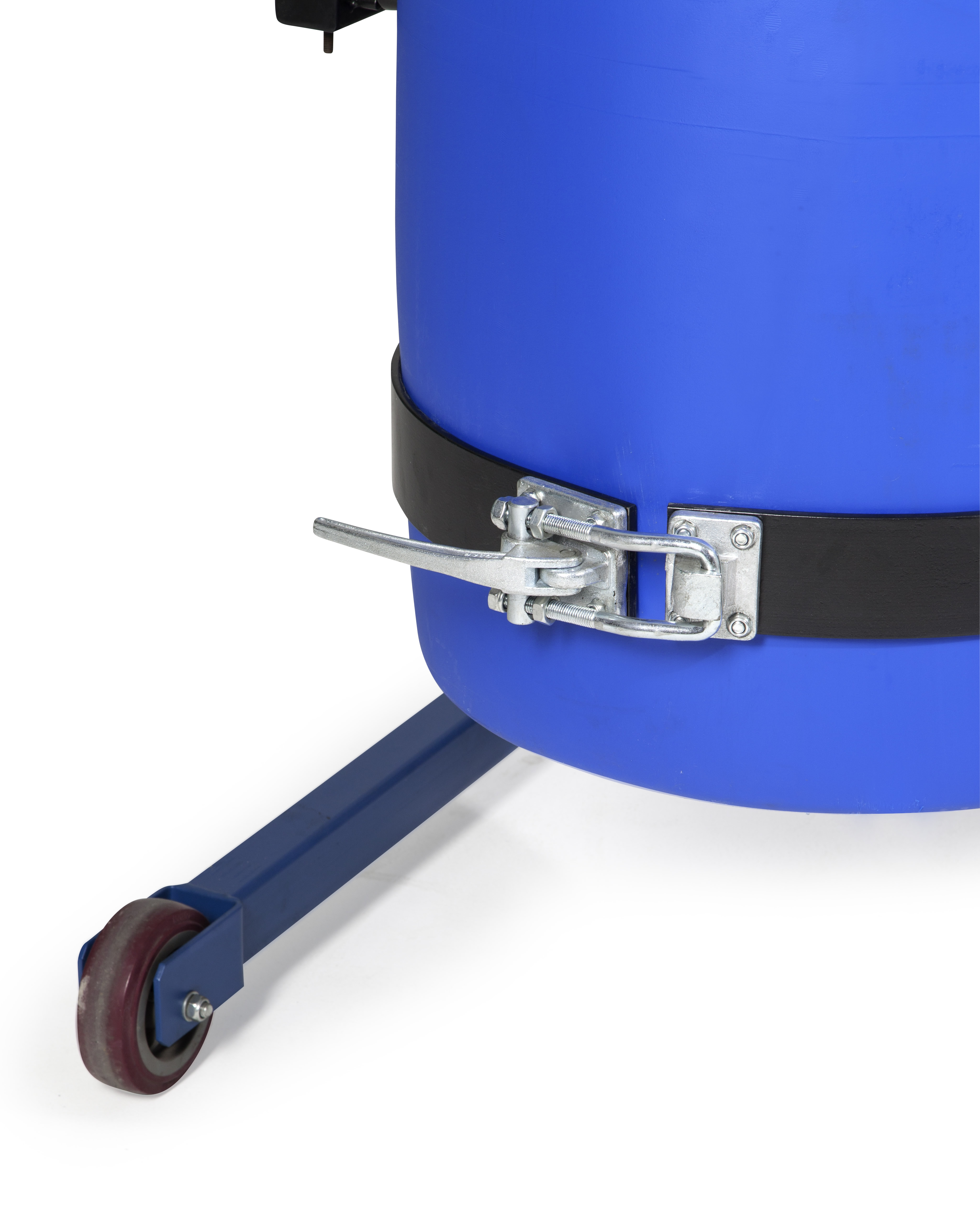

Practical spring lever for safe closure of the clamp
Model: FW-DX
Application: Lifting / turning / transporting steel/plastic drums
Drive: Manual
Chassis/equipment: Parallel
Width, external [mm]: 1105
Length, external [mm]: 1335
Height, external [mm]: 1960
Wheel diameter [mm]: 180
Roll diameter [mm]: 150
Clear chassis width [mm]: 940
Overall load capacity [kg]: 350
Colour: Blue
Suitable for: 205 litre steel drums, 220 litre plastic L ring drums
Stroke [mm]: 1350
Lift height max [mm]: 1270
Lift height per pedal action [mm]: 25
Ground clearance height [mm]: 150
Surface: Powder coated
Material: Steel
Tyres: Polyurethane
Roll material: Polyurethane
Weight [kg]: 295
