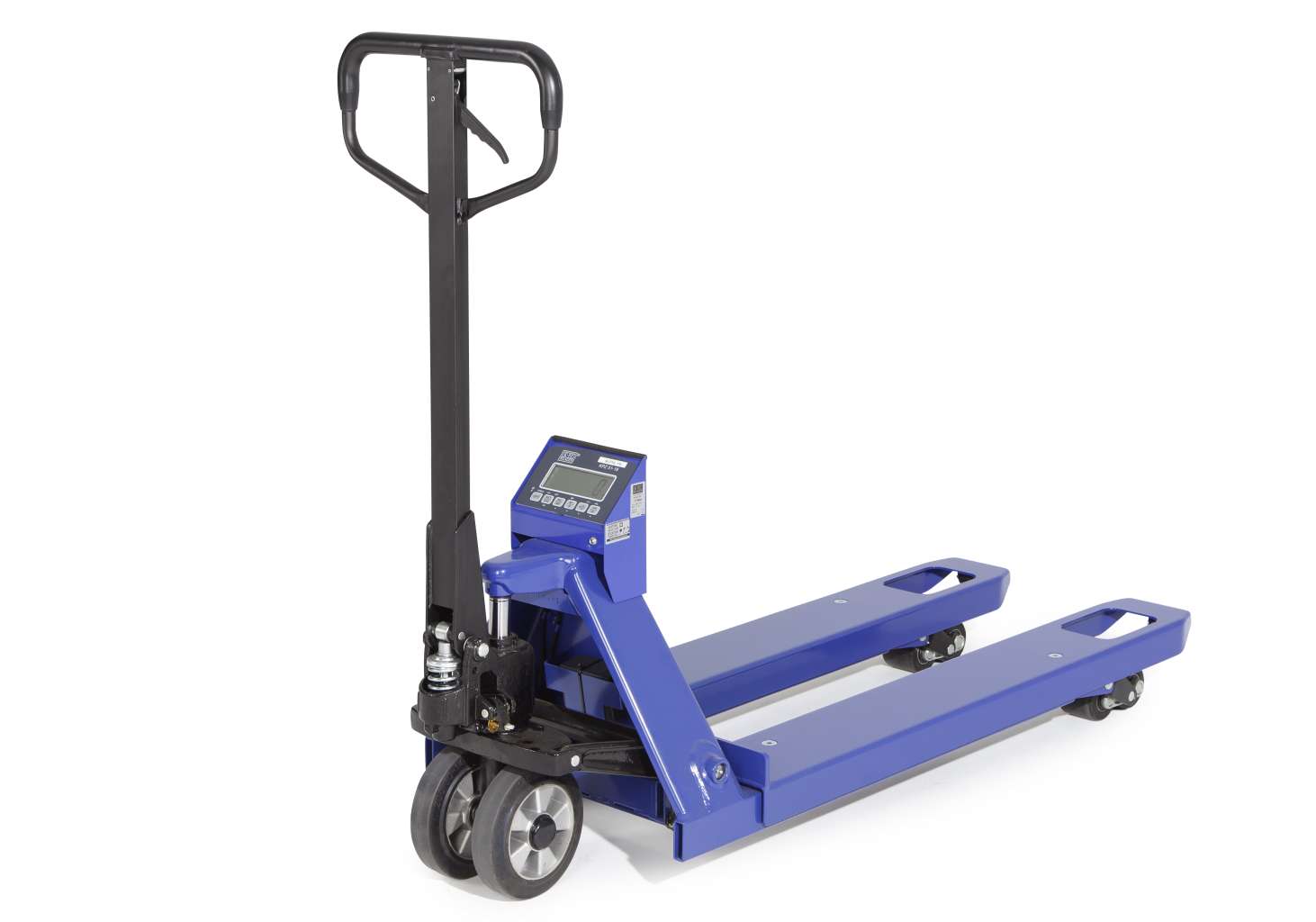

Hand operated pallet truck with scales, model HW 1-Lifting Equipment-DENIOS Safety Equipment Changzhou Co., LTD

Details Tech Specs

Ideal combination for lifting and weighing in one unit

Extremely sturdy ideal for heavy duty and industrial use

Direct calculation of weight while loading and unloading

Scales and display built in to protective steel housing

Weight range 1 to 2200 kg in 1 kg steps

Functions: tare, zero, addition function for weighing, counting reference parts etc

Automatic switch-off, deep discharge protection

6V battery, operational for up to 56 hours approx

Safety handle, which can be operated with one hand

Functions in temperature ranges between -10° and +40° C

Paint similar to RAL 5002 blue

Incl. External charger

Functions in temperature ranges between -10° and +40° C

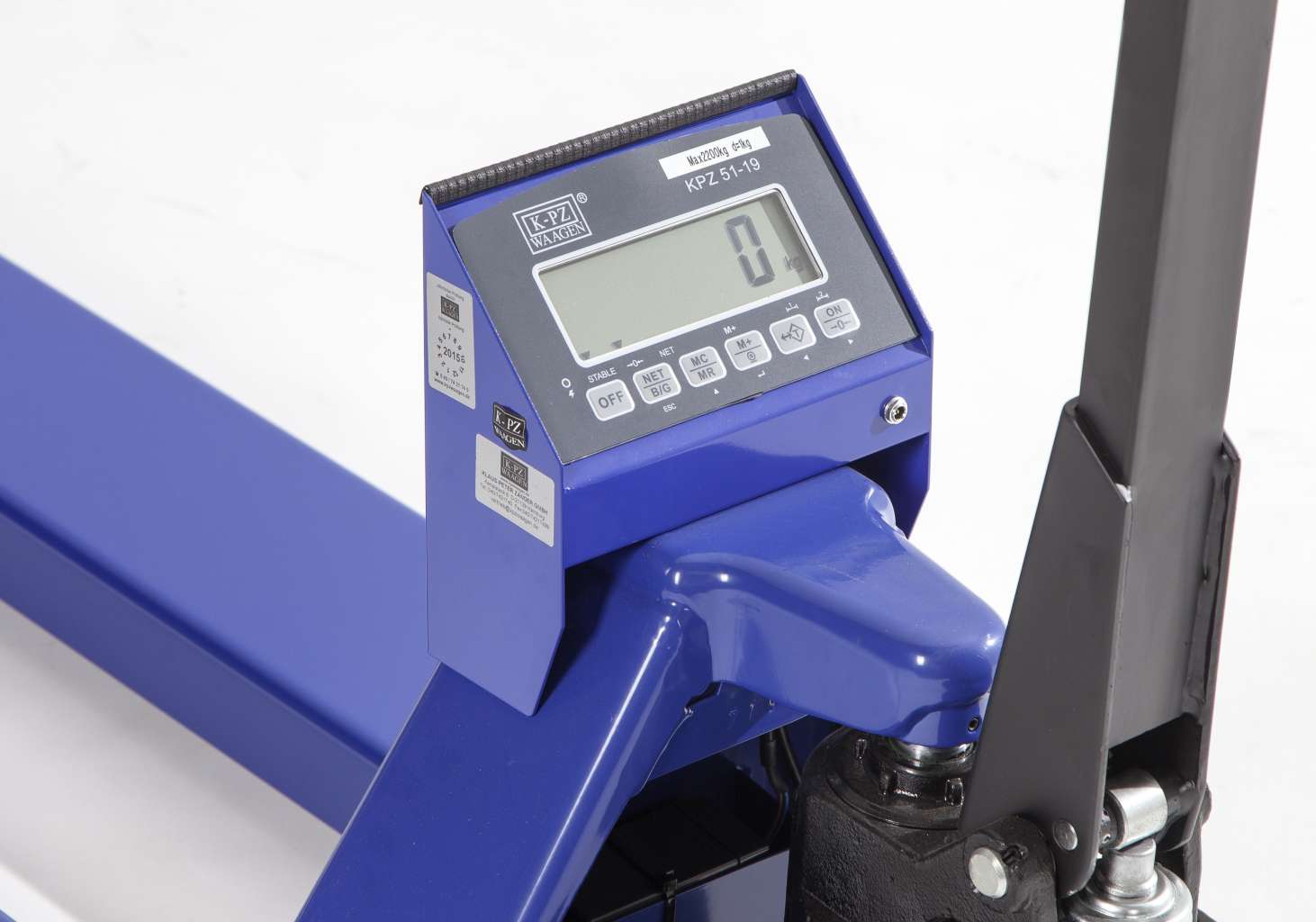

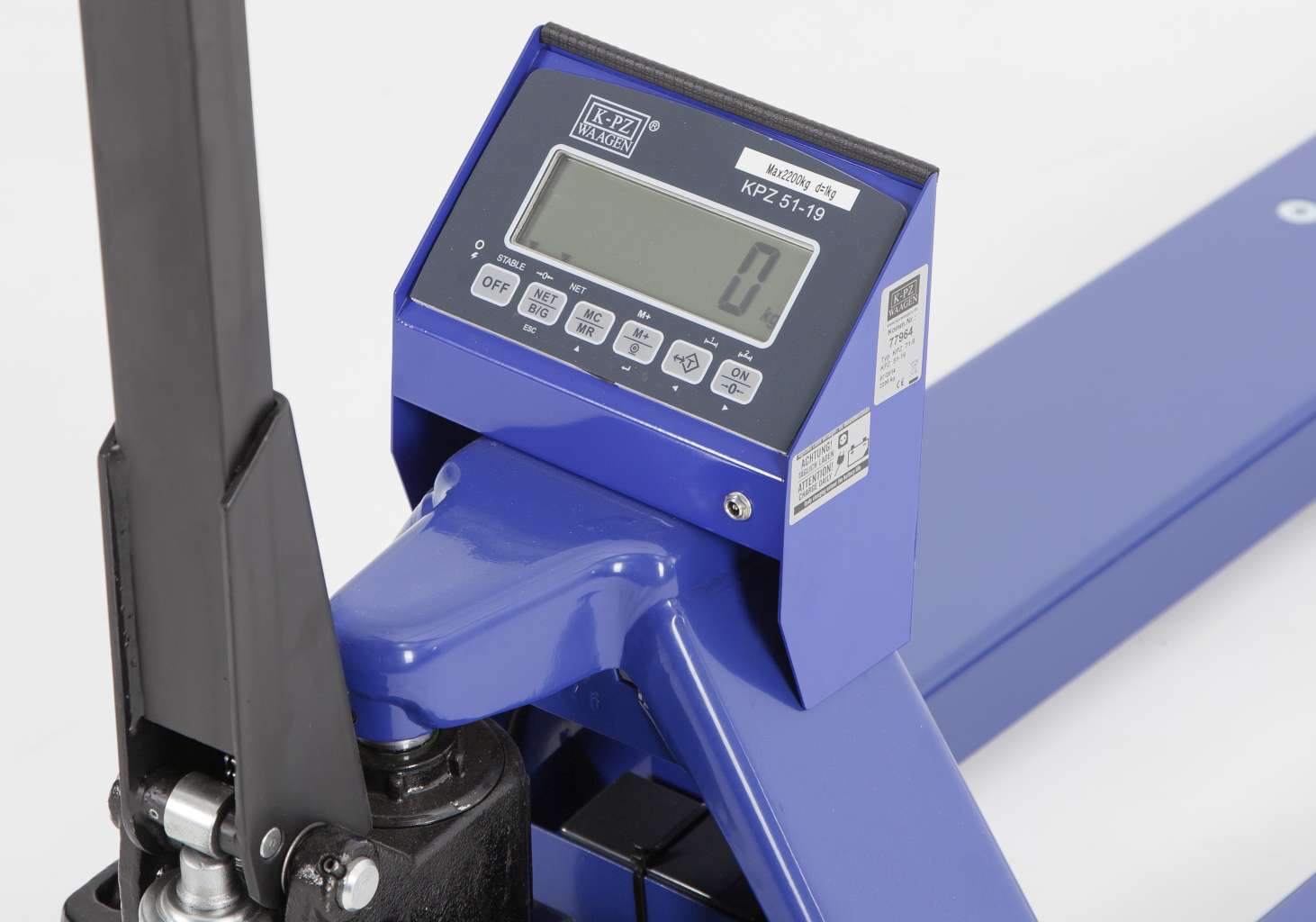

Large LCD display (30 mm) with status symbols, for easy-to-read data

Lifting technology type: Weighing lifting trolley

Overall load capacity [kg]: 2200

Drive: Manual

Width, external [mm]: 560

Length, external [mm]: 1570

Height, external [mm]: 1210

Fork length [mm]: 1150

Fork width [mm]: 170

Width, carrying area [mm]: 560

Wheel diameter [mm]: 200

Roll diameter [mm]: 80

Material: Steel

Colour: Blue

RAL Code: 5002

Nominal voltage [V]: 6

Stroke [mm]: 120

Lift height min [mm]: 90

Lift height max [mm]: 210

Battery type: Lead-acid battery

Loader included: Yes

Certification / certificate description 1: Emv 2004/108 DECL of conformity

Certification / certificate 2: Nsr 2006/95 DECL of conformity

Surface: painted

Tyres: Rubber

Roll material: Polyurethane

Weight [kg]: 100
